LN352GP
LED GRN DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN352GP, a through-hole mounted discrete LED, features a green diffused square lens with a flat top, measuring 4.00mm in diameter. This component operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a millicandela rating of 1mcd. The peak wavelength is 565nm. Its radial package is suitable for applications in industrial automation, consumer electronics, and general indication. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 8.70mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 4.00mm |
Request a Quote
Clients Also Buy
LNJ337W83RA
LED GREEN ESS II SMD

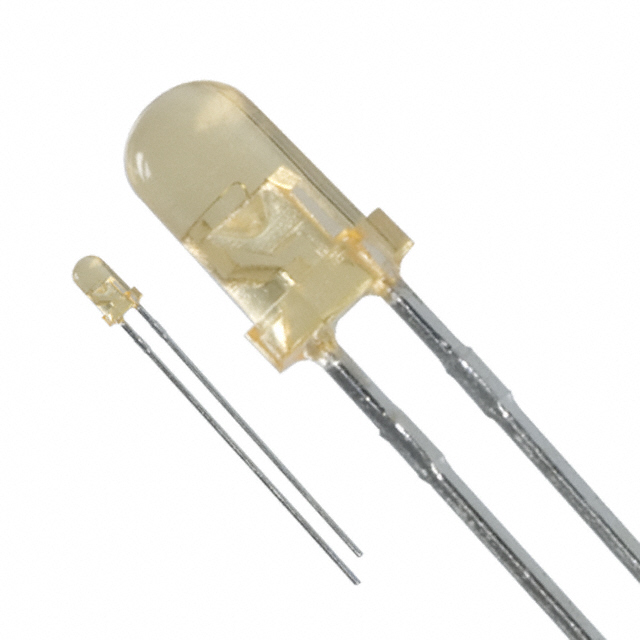

LN48YCPX
