LN350GP
LED GRN DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

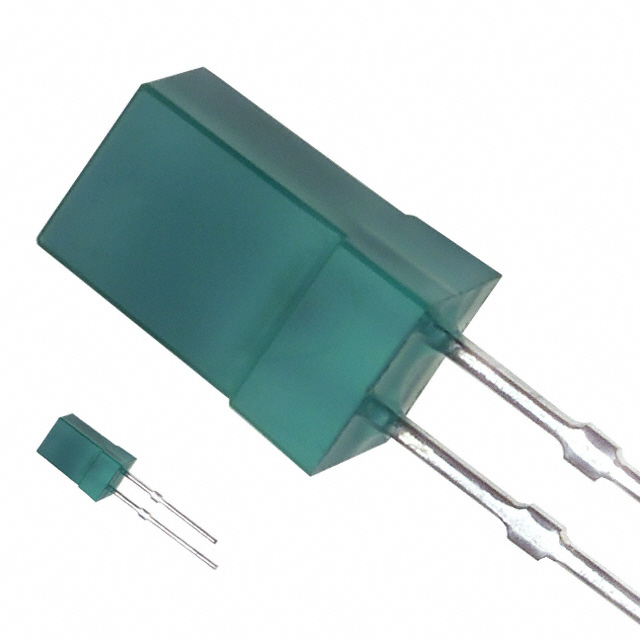

Panasonic Electronic Components' LN350GP is a through-hole mounted, green diffused LED. This discrete indicator component features a square lens with a flat top, measuring 5.00mm, and a typical forward voltage of 2.2V. It operates at a test current of 20mA, producing a millicandela rating of 2mcd. The LED's peak wavelength is 565nm, contributing to its distinct green illumination. Commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication and visual feedback, the LN350GP is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 9.20mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 5.00mm |
