LN342GPH
LED GREEN SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

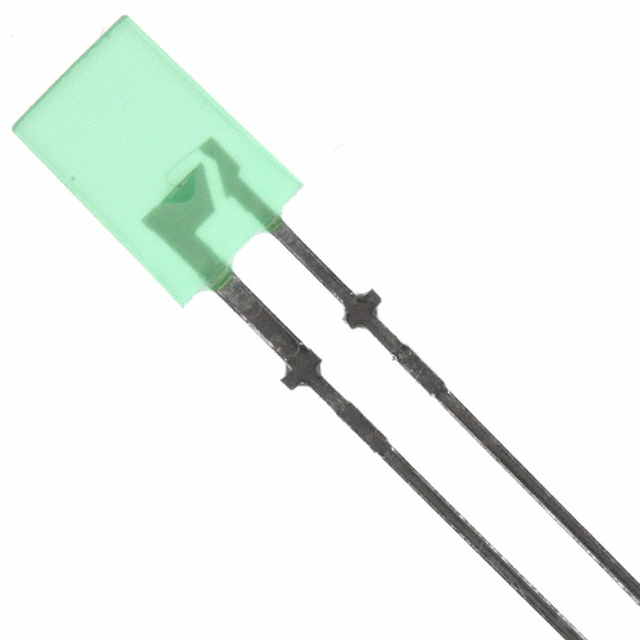

Panasonic Electronic Components LN342GPH is a through-hole mounted green LED with a square type, radial package. This discrete indicator features a forward voltage of 2.2V (typical) and a test current of 20mA, yielding a millicandela rating of 1.5mcd. The lens style is rectangular with a flat top, measuring 5.00mm x 2.00mm, and the peak wavelength is 565nm. This component is commonly utilized in industrial automation, consumer electronics, and general indication applications where reliable visual feedback is required.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 7.70mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
