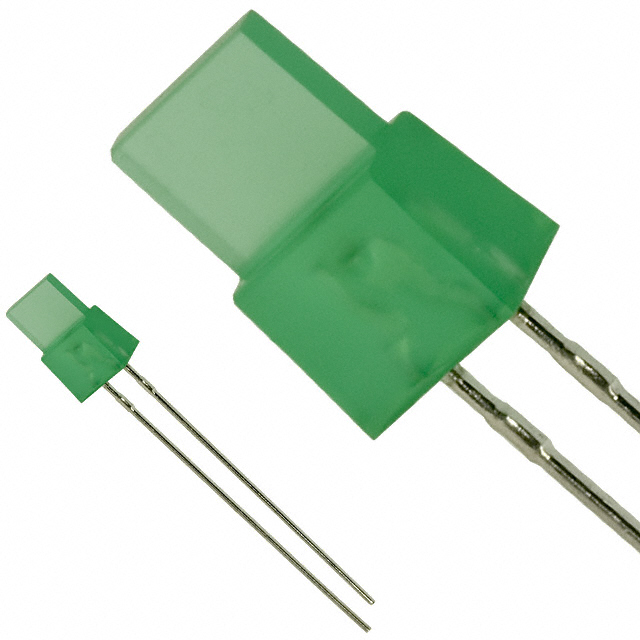

LN324GPXB
LED GRN DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN324GPXB is a green, diffused, square-type LED with a through-hole mounting configuration. This discrete indicator component operates with a typical forward voltage of 2.2V and a test current of 20mA, achieving a millicandela rating of 2.5mcd. The lens is green, diffused, and rectangular with a flat top, measuring 5.00mm x 1.00mm. The component's peak wavelength is 565nm. This device is commonly utilized in industrial automation and control systems for status indication. The package is radial, supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 8.70mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 1.00mm |
