LN317GPH
LED GREEN SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

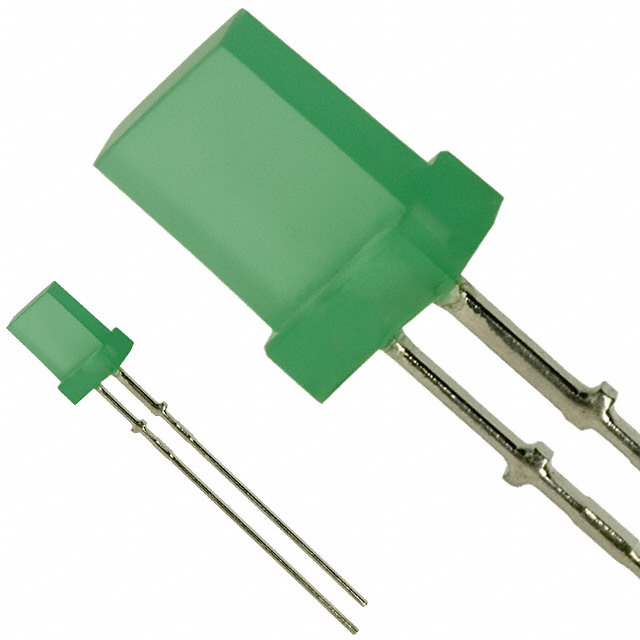

Panasonic Electronic Components LN317GPH is a through-hole mounted green LED, featuring a square lens style with a flat top measuring 5.30mm x 1.80mm. This discrete indicator component operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a millicandela rating of 1.5mcd. The dominant wavelength is 565nm. This component is suitable for various industrial applications requiring reliable visual indication, commonly found in control panels, instrumentation, and general electronic equipment. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 13.85mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.30mm x 1.80mm |
