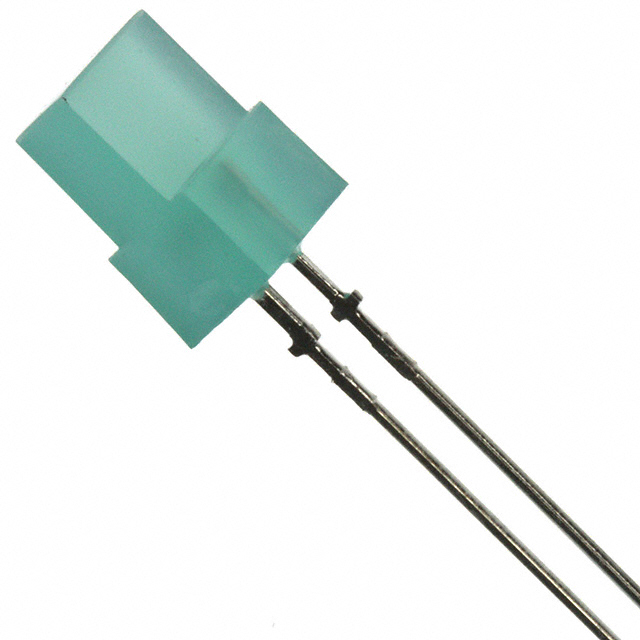

LN316GPH
LED GREEN SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN316GPH is a through-hole mounted, square-type LED designed for discrete indication applications. This component features a green light emission with a peak wavelength of 565nm. The forward voltage (Vf) is 2.2V, and it operates with a test current of 20mA, yielding a millicandela rating of 1.5mcd. The lens profile is a 7.00mm x 3.00mm rectangle with a flat top. This component is commonly utilized in industrial automation, consumer electronics, and medical devices where reliable visual status indication is required. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 13.85mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 7.00mm x 3.00mm |
