LN29RPX
LED RED DIFFUSED 4MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

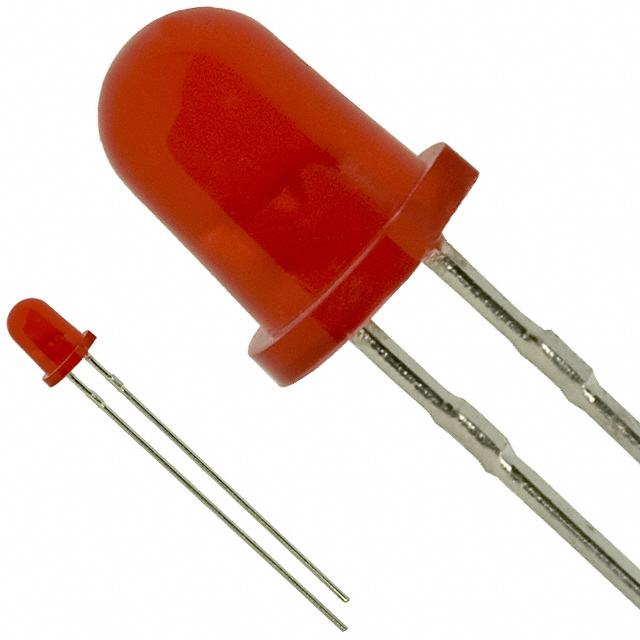

Panasonic Electronic Components LN29RPX is a red diffused 4mm round through-hole LED designed for clear visual indication. This discrete component operates with a typical forward voltage of 2.2V and a test current of 15mA, producing a luminous intensity of 2mcd. The diffused lens ensures a wide, uniform light output. Its radial package and 4mm diameter are suitable for mounting on PCBs across various applications, including industrial control panels and consumer electronics. The 700nm peak wavelength contributes to its distinct red hue.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 6.20mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 4mm Round |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 4.00mm Dia |
