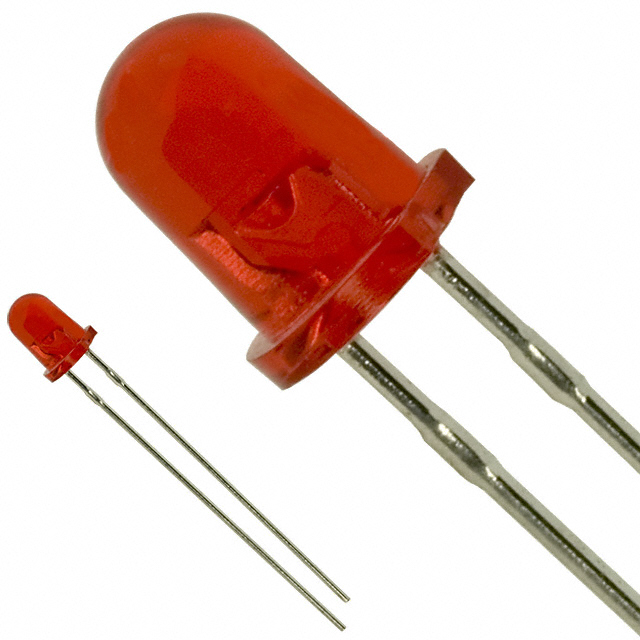

LN29RCPX
LED RED 4MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN29RCPX is a red, 4mm round through-hole LED designed for discrete indication applications. This component features a typical forward voltage of 2.2V and a test current of 15mA, yielding a millicandela rating of 3.5mcd. The dominant wavelength is 700nm. Its radial package and 6.20mm maximum height are suitable for board-level mounting. This LED is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 6.20mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 4mm Round |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 4.00mm Dia |
