LN28RCP
LED RED CLEAR 3MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

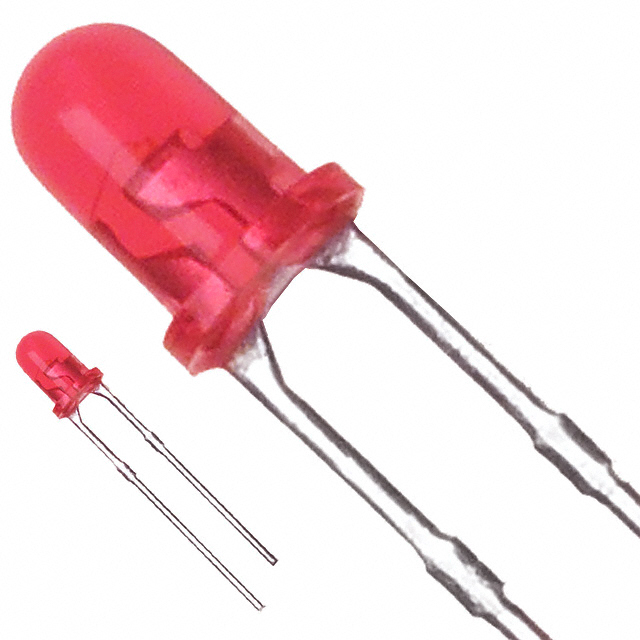

Panasonic Electronic Components LN28RCP is a through-hole, red, clear lens, 3mm round LED. This discrete indicator features a 2.2V typical forward voltage and operates at a 15mA test current, producing 1.5mcd luminous intensity. Designed for radial mounting, its domed top lens style and clear lens provide consistent light dispersion. This component is suitable for various industrial applications requiring reliable visual indication.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 5.20mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 3mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
