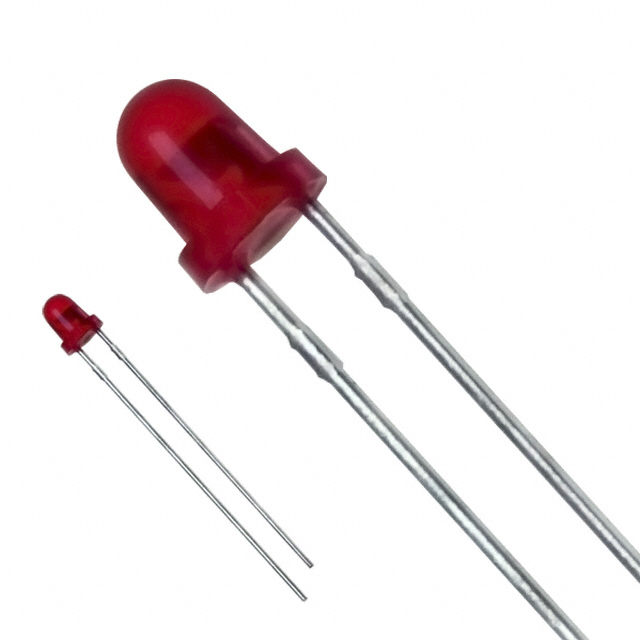

LN276RPX
LED RED 3.2MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN276RPX is a discrete red LED with a 3.2mm diameter round, domed top lens. This through-hole mounted component operates with a typical forward voltage of 2.2V and is rated for 20mA test current, producing 1mcd luminous intensity. The dominant wavelength is 700nm. This radial package LED is suitable for indication applications across various industries requiring reliable visual feedback. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 4.80mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 3.20mm Dia |
