LN264CP
LED RED CLEAR FLAT TOP LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

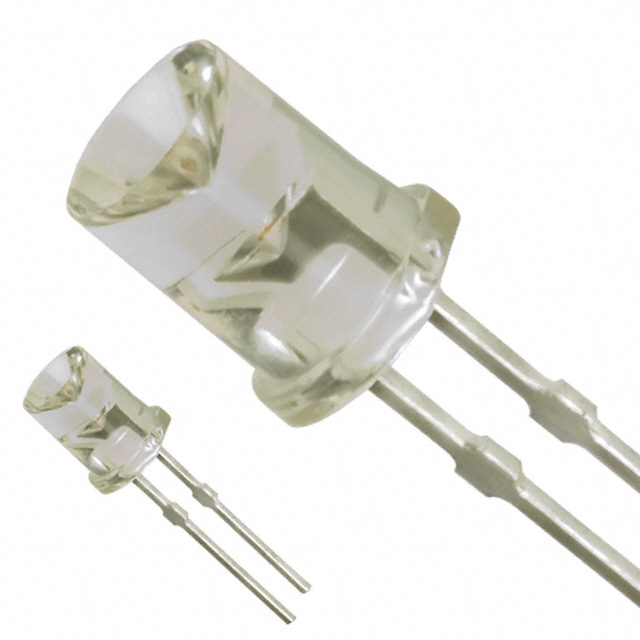

Panasonic Electronic Components LN264CP is a through-hole mounted red LED, featuring a clear, colorless lens with a flat top design. This discrete indicator component operates with a typical forward voltage of 2.2V and a test current of 15mA, achieving a millicandela rating of 0.5mcd. The radial package (Radial, Bulk) contains a component with a lens diameter of 4.80mm and a maximum height of 6.90mm. The dominant wavelength is 700nm. This component is commonly utilized in industrial automation and general signaling applications.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 6.90mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Flat Top LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.80mm Dia |
