LN263CPP
LED RED CLEAR FLAT TOP LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

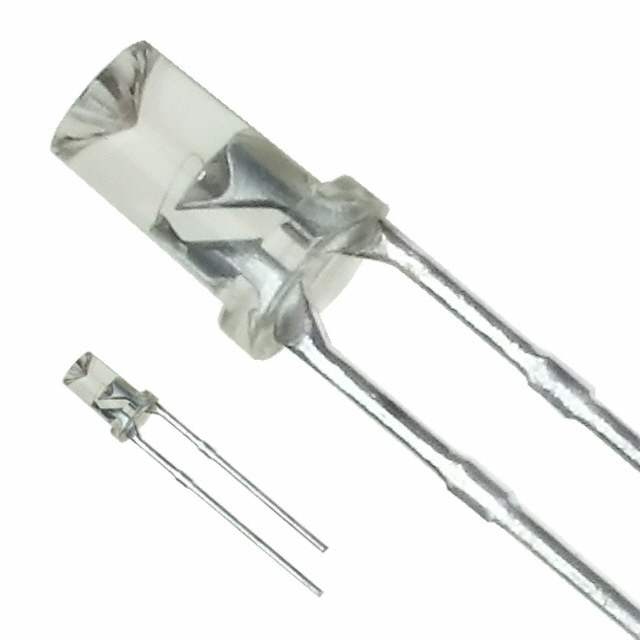

Panasonic Electronic Components LN263CPP is a through-hole mounted red LED with a clear, colorless lens. Featuring a flat-top round lens profile with a 2.80mm diameter, this discrete indicator component operates with a typical forward voltage of 2.2V and a test current of 15mA, yielding a millicandela rating of 0.4mcd. The component's peak wavelength is 700nm. This device is suitable for general indication purposes across various electronic assemblies. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.4mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 5.70mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Flat Top LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.80mm Dia |
