LN260RPX
LED RED SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

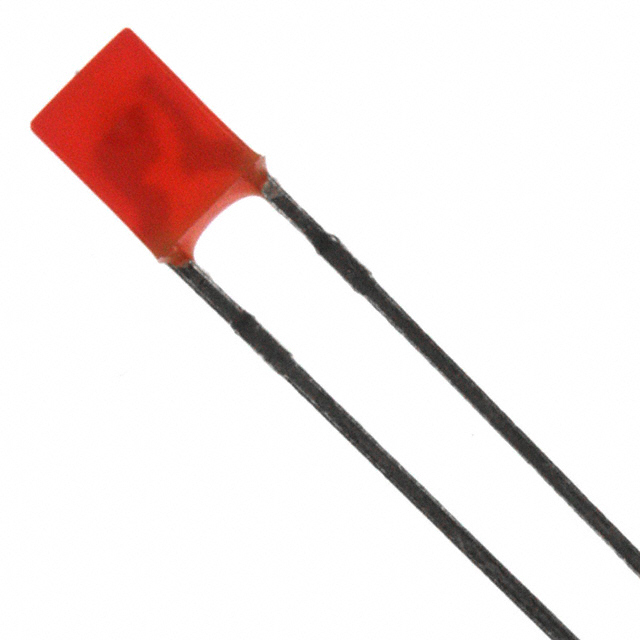

Panasonic Electronic Components LN260RPX is a red, through-hole mounted LED designed for discrete indication applications. This component features a square-type lens with a flat top, measuring 3.00mm x 2.00mm. It operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a millicandela rating of 0.7mcd. The dominant wavelength is 700nm. This device is suitable for use in industrial automation, consumer electronics, and general electronic instrumentation where reliable visual feedback is required. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 4.20mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.00mm x 2.00mm |
