LN25RP
LED RED DIFFUSED T/H R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

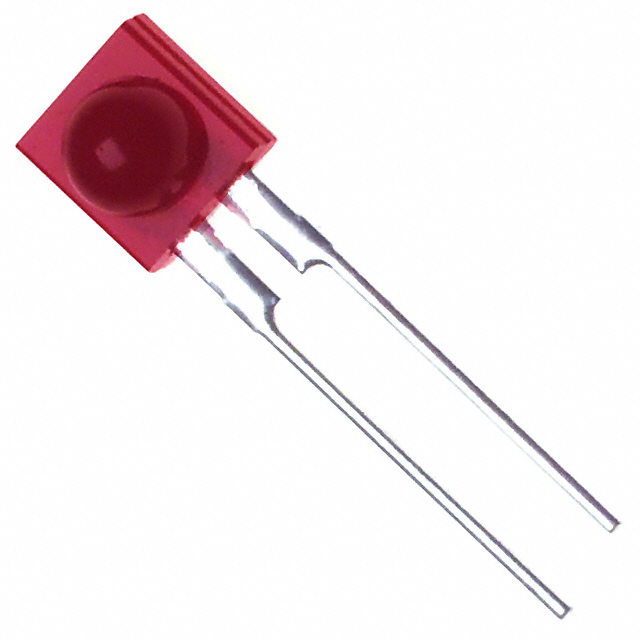

Panasonic Electronic Components LN25RP is a red diffused LED designed for through-hole, right-angle mounting. This discrete indicator features a 2.2V forward voltage (typical) and a 700nm peak wavelength. It is supplied in Bulk packaging and offers a diffused lens for broad illumination, with a 3.50mm diameter. The component is rated for 15mA test current, producing 0.7mcd luminous intensity. Its radial, side-view package is suitable for various applications including industrial control panels, consumer electronics, and general status indication.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial, Side View |
| Color | Red |
| Size / Dimension | 5.00mm L x 3.30mm W |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 0.7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | - |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.50mm Dia |
