LN252RPX
LED RED DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

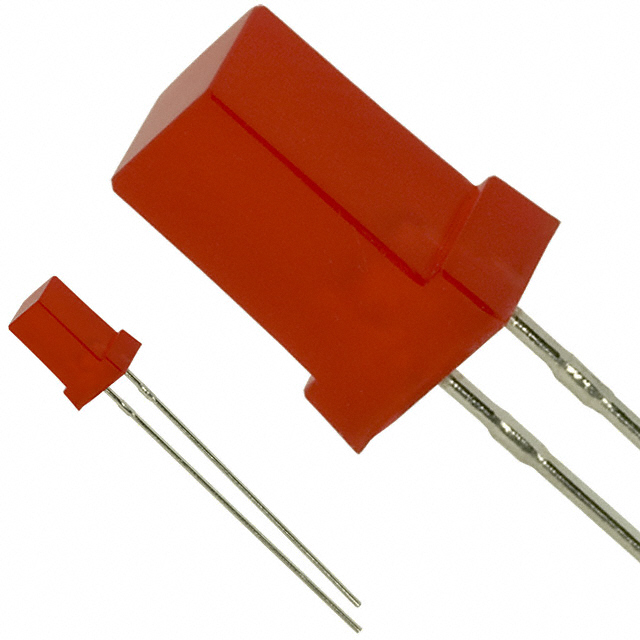

Panasonic Electronic Components LN252RPX is a red diffused, square-type, through-hole LED designed for general indication applications. Featuring a forward voltage of 2.2V at a test current of 15mA, this component emits light with a peak wavelength of 700nm. The diffused lens provides a wide viewing area, making it suitable for panel indicators, status lights, and control interfaces across industrial automation, consumer electronics, and automotive systems. The radial package facilitates easy mounting on printed circuit boards.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 8.70mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 4.00mm |
