LN252RP
LED RED DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

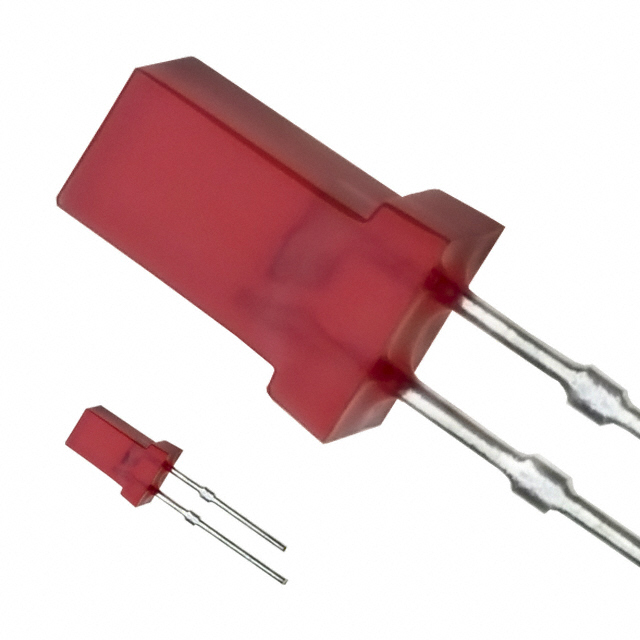

Panasonic Electronic Components LN252RP is a red diffused square LED with through-hole mounting. This discrete indicator component features a forward voltage of 2.2V (typical) and a test current of 15mA, producing a millicandela rating of 0.6mcd. The lens color is red, with a square, flat-top style diffusion providing a 700nm peak wavelength. This component is suitable for applications requiring reliable visual indication, commonly found in industrial automation, consumer electronics, and medical equipment. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 8.70mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 4.00mm |
