LN247RP
LED RED DIFFUSED AXIAL T/H AXIALManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

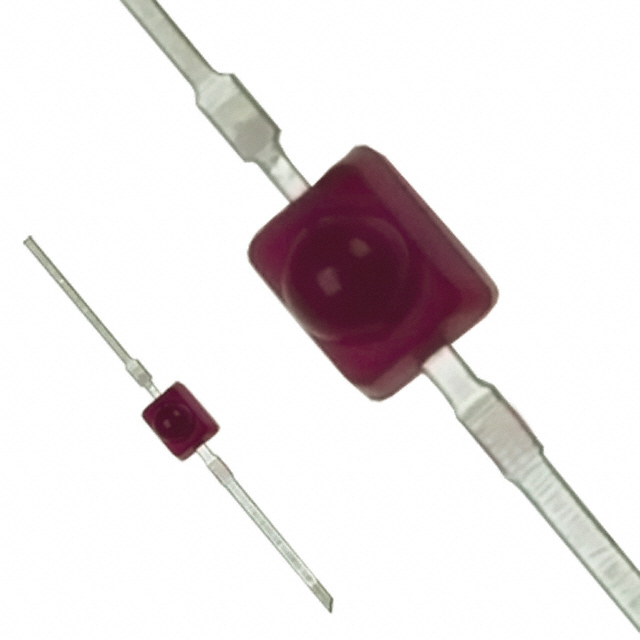

Panasonic Electronic Components LN247RP is a red diffused LED with an axial, through-hole mounting package. This discrete indicator features a 2.2V forward voltage and a typical forward current of 15mA, producing 0.7mcd luminous intensity. The component utilizes flat leads for termination and has a diffused lens with a domed top, measuring 1.80mm in diameter. Its dimensions are 2.80mm in length and 2.80mm in width, with a maximum height of 3.00mm. This LED's specifications make it suitable for general indication applications across various industrial sectors.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Red |
| Size / Dimension | 2.80mm L x 2.80mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 0.7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 3.00mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Axial |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
