LN242RPH
LED RED SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

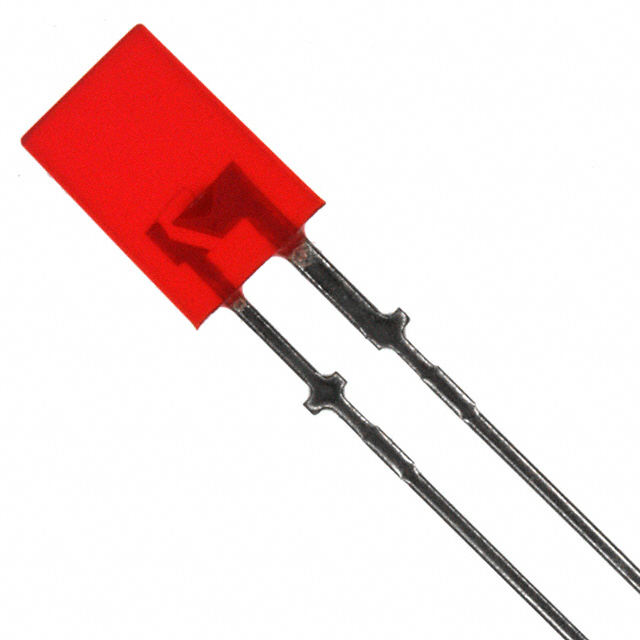

Panasonic Electronic Components LN242RPH is a discrete red LED designed for through-hole mounting. This component features a square-type lens with a flat top, measuring 5.00mm x 2.00mm. It operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a millicandela rating of 0.4mcd. The LED emits light at a peak wavelength of 700nm. This component is suitable for various indication applications across industrial automation, consumer electronics, and medical device sectors. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.4mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 12.20mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
