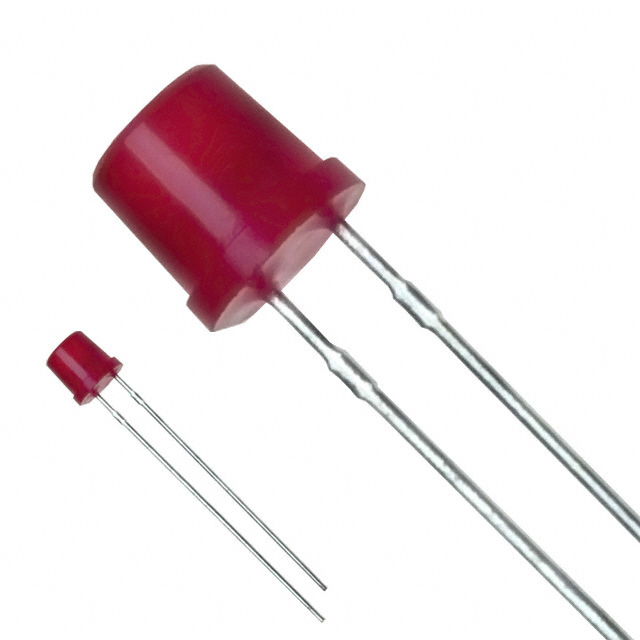

LN240RPX
LED RED 4.4MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN240RPX is a discrete red LED with a 4.4mm round lens and through-hole mounting. This component is designed for reliable visual indication with a typical forward voltage of 2.2V and a test current of 20mA, producing 0.7mcd of luminous intensity. The radial package is supplied in bulk. Its specifications make it suitable for applications in industrial automation, consumer electronics, and medical devices where clear, consistent LED indication is critical. The 700nm peak wavelength ensures a distinct red hue.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 5.20mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 4.40mm Dia |
