LN238RPH
LED RED DIFFUSED 3MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

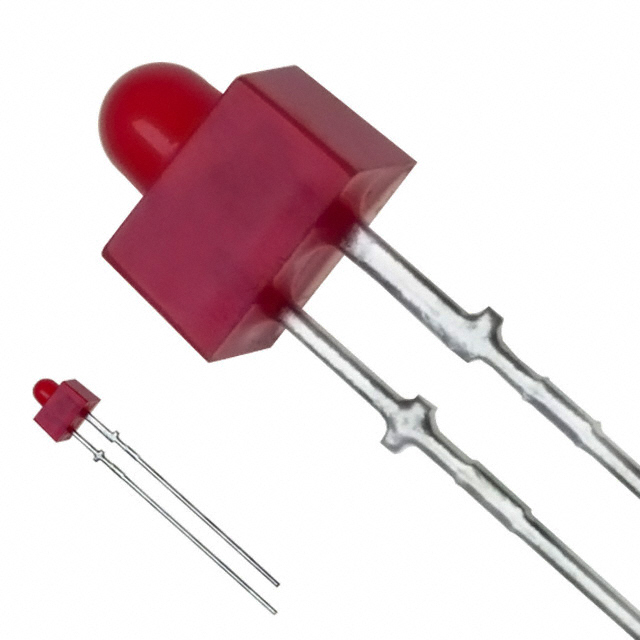

Panasonic Electronic Components LN238RPH is a red diffused 3mm round LED designed for through-hole mounting. This discrete LED component operates with a typical forward voltage of 2.2V and a test current of 15mA, producing a luminous intensity of 2mcd. The diffused lens ensures uniform light distribution. Its radial package is suitable for various industrial applications including instrumentation, control panels, and consumer electronics requiring reliable visual indication. The component features a 700nm peak wavelength.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 10.85mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 3mm Round |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
