LN224RP
LED RED DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

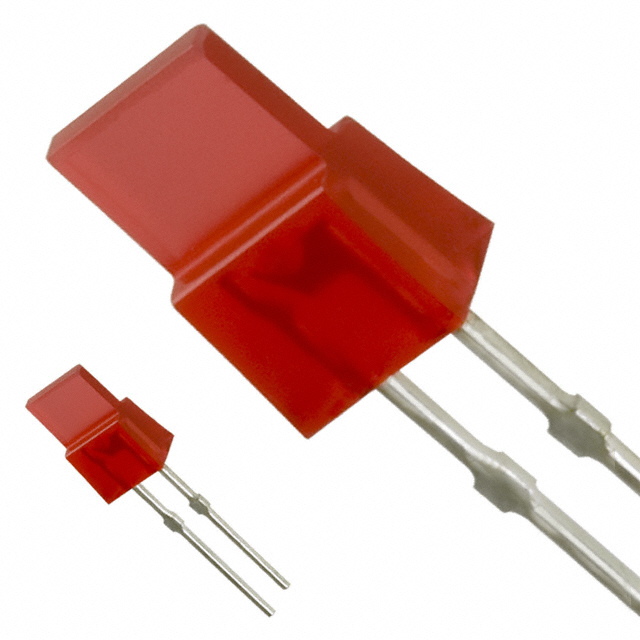

Panasonic Electronic Components LN224RP is a red diffused, square-type, through-hole LED designed for discrete indication. This component features a typical forward voltage of 2.2V and operates at a test current of 15mA, producing a millicandela rating of 0.6mcd. The lens color is red, with a diffused transparency, and a rectangular shape measuring 5.00mm x 1.00mm. This LED is suitable for applications requiring reliable visual feedback in industrial automation, consumer electronics, and medical equipment. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 8.70mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 1.00mm |
