LN21RPSL
LED RED DIFFUSED 5MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

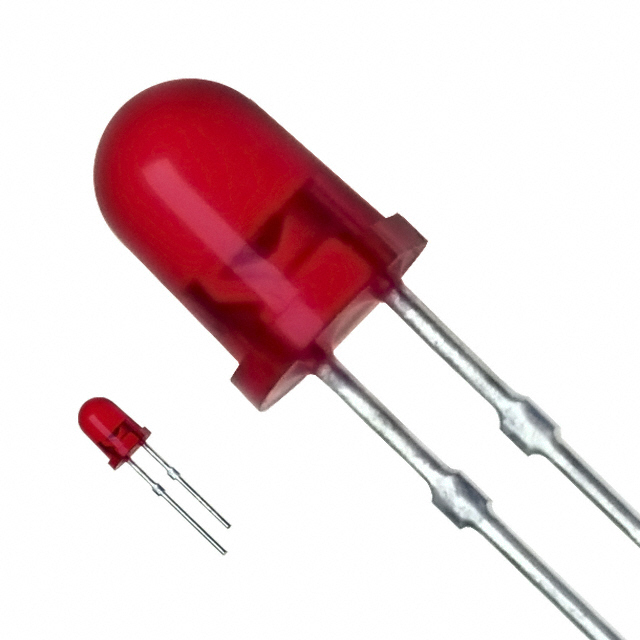

Panasonic Electronic Components LN21RPSL is a discrete red LED with a diffused, round lens, designed for through-hole mounting. This component operates with a typical forward voltage of 2.2V and a test current of 15mA, achieving a luminous intensity of 3mcd. The 5mm (T-1 3/4) lens offers a diffused light output with a peak wavelength of 700nm. Its radial package is suitable for applications across industrial automation, consumer electronics, and general indication systems where reliable visual feedback is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 7.70mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
