LN21RCPH
LED RED 5MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

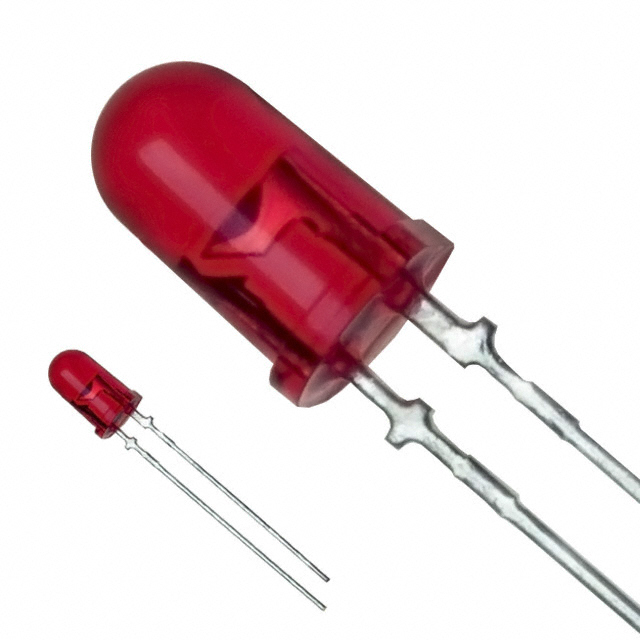

Panasonic Electronic Components LN21RCPH is a discrete red LED designed for through-hole mounting. This 5mm, T-1 3/4 LED features a round, domed top lens and a forward voltage of 2.2V at a typical test current of 20mA, achieving a luminous intensity of 5mcd. The peak wavelength is 700nm. Commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication, this component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 8.85mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm Round |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
