LN21CPHL
LED RED CLEAR 5MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

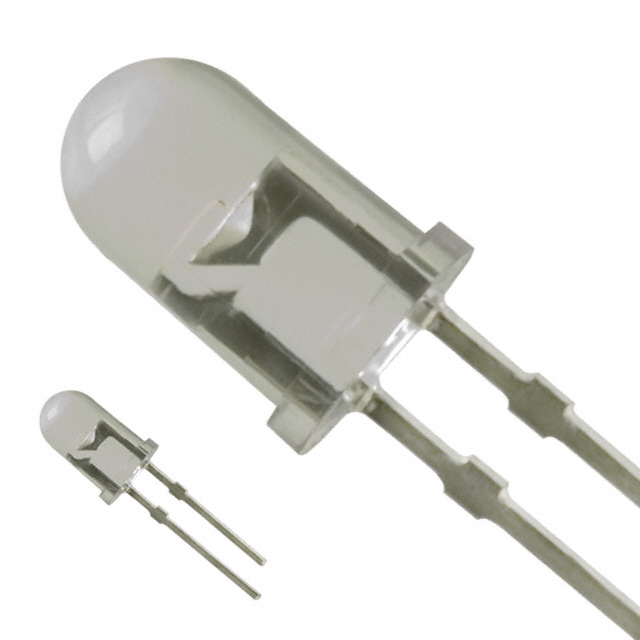

Panasonic Electronic Components LN21CPHL is a red, clear lens, through-hole mounted LED. This discrete indicator component features a 5mm, T-1 3/4 round with domed top lens style. The LN21CPHL operates with a typical forward voltage (Vf) of 2.2V and a test current of 15mA, yielding a millicandela rating of 5mcd. The dominant wavelength is 700nm. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications for visual indication. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 11.65mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
