LN217RPH
LED RED DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

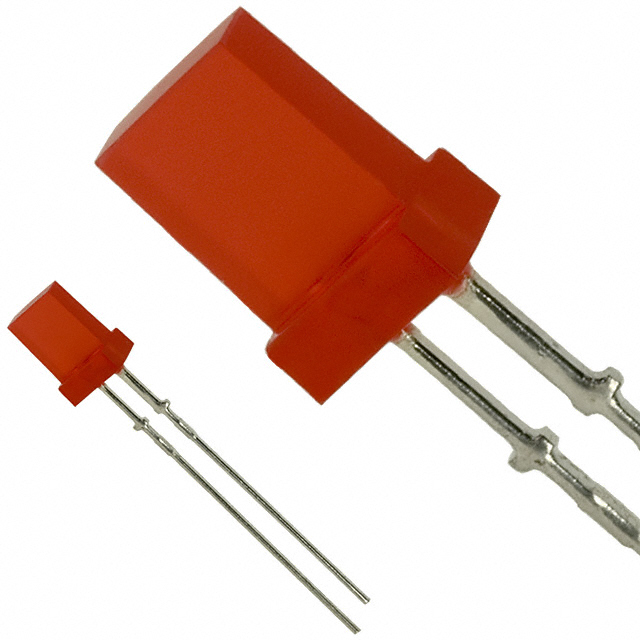

Panasonic Electronic Components LN217RPH is a red diffused, through-hole LED designed for clear visual indication. This component features a forward voltage of 2.2V (typical) and operates at a test current of 20mA, delivering a millicandela rating of 0.6mcd. The LED's diffused lens, with a rectangular shape measuring 5.30mm x 1.80mm and a peak wavelength of 700nm, ensures a soft, wide light distribution. Its radial mounting type and square-type package are suitable for various industrial applications, including industrial automation, consumer electronics, and medical equipment where reliable status indication is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 13.85mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.30mm x 1.80mm |
