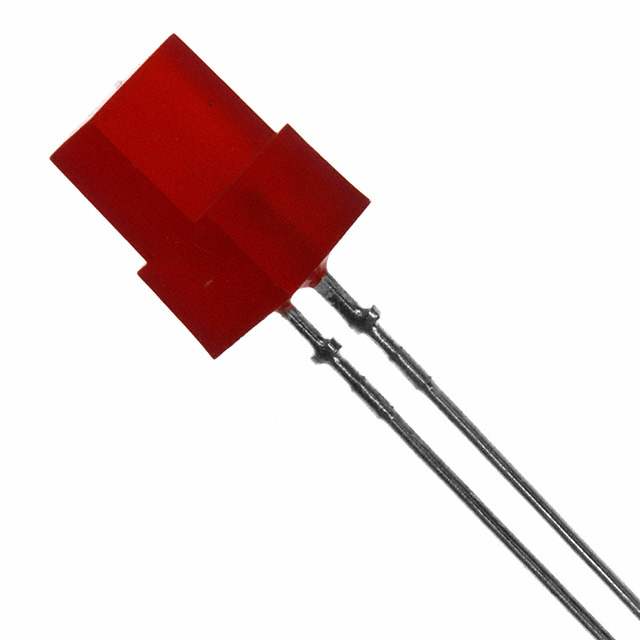

LN216RPH
LED RED DIFF SQUARE TYPE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN216RPH is a red diffused, through-hole LED designed for indication applications. This discrete component features a standard configuration with a forward voltage of 2.2V (typical) and operates at a test current of 20mA, producing a millicandela rating of 0.5mcd. The LED has a square type lens with a flat top, measuring 7.00mm x 3.00mm, and a red diffused lens color for optimal visibility. Its radial package style is suitable for various industrial and consumer electronics assemblies, including control panels and instrumentation. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 13.85mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 7.00mm x 3.00mm |
