LN2162C13TR
LED GRN/RED CLR GW TYPE LED SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

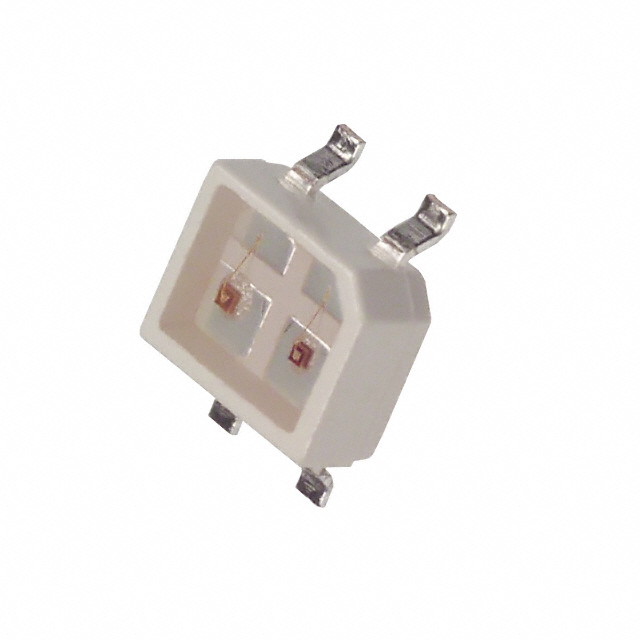

Panasonic Electronic Components' LN2162C13TR is a discrete dual-color LED designed for surface mounting. This component features independent green and red emitters within a 4-SMD, Gull Wing package, measuring 3.40mm L x 2.10mm W with a maximum height of 1.80mm. The clear, colorless lens has a rectangular shape with a flat top and a size of 2.10mm x 2.70mm. Under typical test conditions of 10mA, the forward voltage is 2.05V for green and 2V for red. Luminous intensity is rated at 4mcd for green and 1.8mcd for red. The dominant wavelengths are 565nm for green and 650nm for red. This component is commonly utilized in industrial control systems, consumer electronics, and automotive applications for status indication. The product is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Green, Red |
| Size / Dimension | 3.40mm L x 2.10mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4mcd Green, 1.8mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.05V Green, 2V Red |
| Lens Color | Colorless |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | - |
| Height (Max) | 1.80mm |
| Wavelength - Peak | 565nm Green, 650nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | GW Type LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.10mm x 2.70mm |
