LN1451CTR
LED AMBER CLEAR 2SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

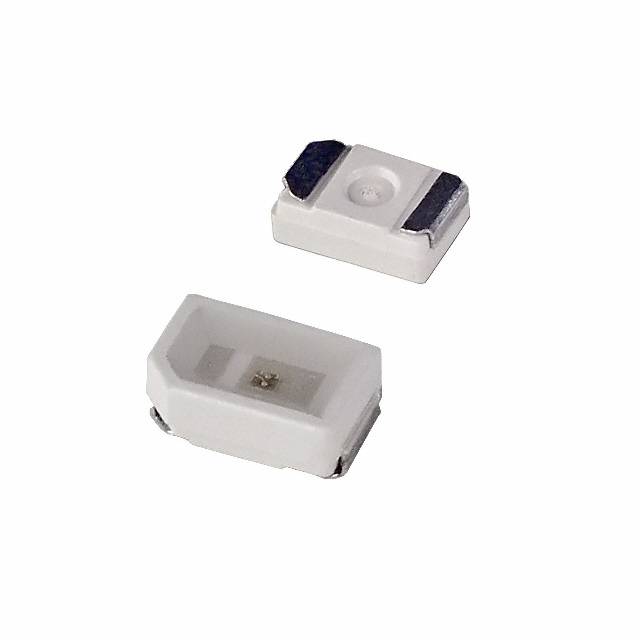

Panasonic Electronic Components LN1451CTR is a discrete LED with a direct view, surface mount package (2-SMD, J-Lead). This component features an amber color with a peak wavelength of 590nm, providing a typical forward voltage of 2.1V at 10mA test current. The clear, colorless lens has a rectangular shape with a flat top. Applications for this component include industrial control, automotive systems, and general indication in electronic devices. The compact dimensions of 3.00mm L x 2.00mm W, with a maximum height of 1.40mm, facilitate integration into space-constrained designs. The LN1451CTR is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Amber |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2.2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.40mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
