LN142WP38
LED GRN/ORG DIFF SQUARE LED T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

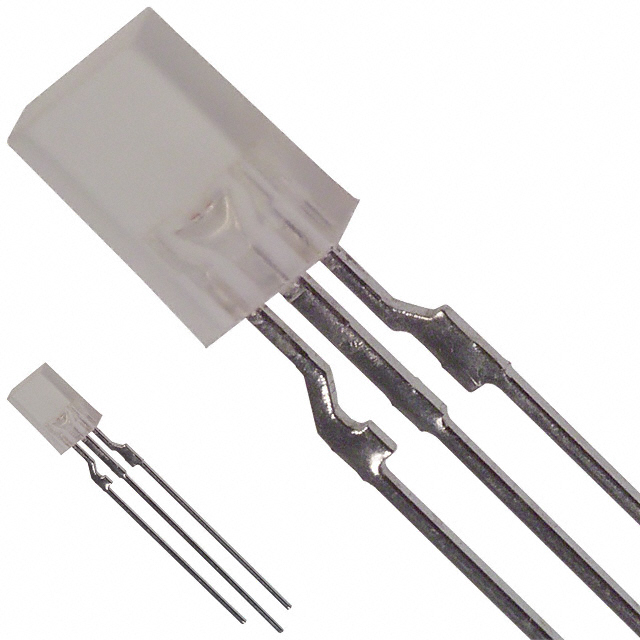

Panasonic Electronic Components LN142WP38 is a through-hole, dual-color LED featuring Green and Orange illumination within a diffused rectangular lens. This component, with a common cathode configuration, offers a forward voltage of 2.2V for green and 2.1V for orange at a 20mA test current. The radiant intensity is rated at 3mcd for green and 2.5mcd for orange. Its physical dimensions include a height of 13.75mm and a lens size of 5.00mm x 2.00mm. The square type LED is supplied in bulk packaging. Applications for this discrete indicator include industrial control systems and consumer electronics, where clear visual feedback is essential.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 3 Leads |
| Color | Green, Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3mcd Green, 2.5mcd Orange |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Orange |
| Lens Color | White |
| Current - Test | 20mA Green, 20mA Orange |
| Viewing Angle | - |
| Height (Max) | 13.75mm |
| Wavelength - Peak | 565nm Green, 630nm Orange |
| Wavelength - Dominant | - |
| Supplier Device Package | Square Type LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
