LN1371GTR
LED GREEN DIFFUSED S-GW SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

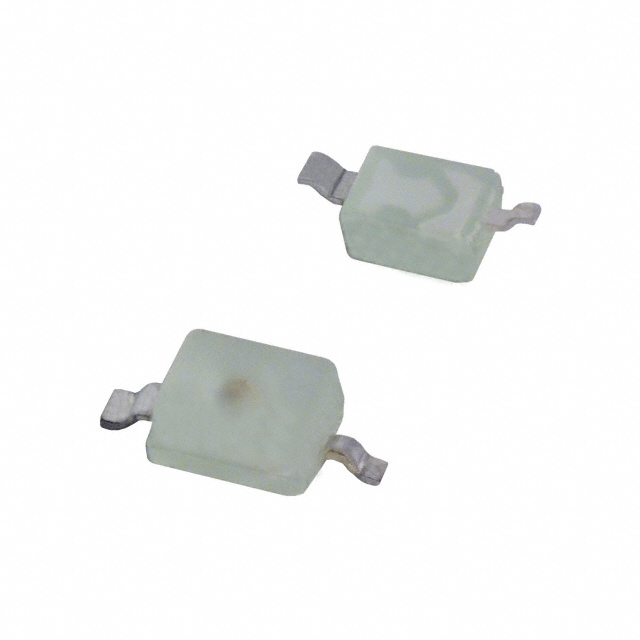

The Panasonic Electronic Components LN1371GTR is a green diffused LED designed for surface mount applications. This discrete indicator component features a 2-SMD, Gull Wing package, also known as S-GW Type LED. With a forward voltage (Vf) of 2.03V (typical) and a test current of 10mA, it achieves a millicandela rating of 2.6mcd. The diffused lens, with dimensions of 1.70mm x 1.25mm, provides a uniform light output. This component is commonly utilized in industrial automation, consumer electronics, and automotive control systems where reliable visual indication is critical. The LN1371GTR is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Green |
| Size / Dimension | 1.70mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.03V |
| Lens Color | Green |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | S-GW Type LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.70mm x 1.25mm |
