LN11WP23
LED GREEN/RED 5MM ROUND T/HManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

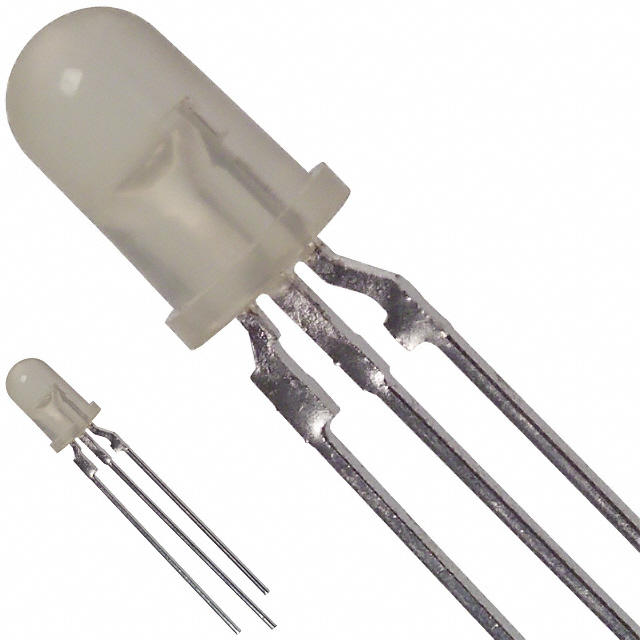

Panasonic Electronic Components LN11WP23 is a through-hole, common cathode, bi-color LED with a 5mm round lens. This discrete component offers simultaneous or independent illumination of green and red light. The forward voltage for both colors is 2.2V at a test current of 20mA. Luminous intensity for green is 15mcd and for red is 3mcd at the specified test current. Peak wavelength for green is 565nm and for red is 700nm. This component is commonly found in industrial control panels and status indicator applications. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 3 Leads |
| Color | Green, Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 15mcd Green, 3mcd Red |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.2V Red |
| Lens Color | - |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | - |
| Height (Max) | 13.30mm |
| Wavelength - Peak | 565nm Green, 700nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | 5mm Round |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
