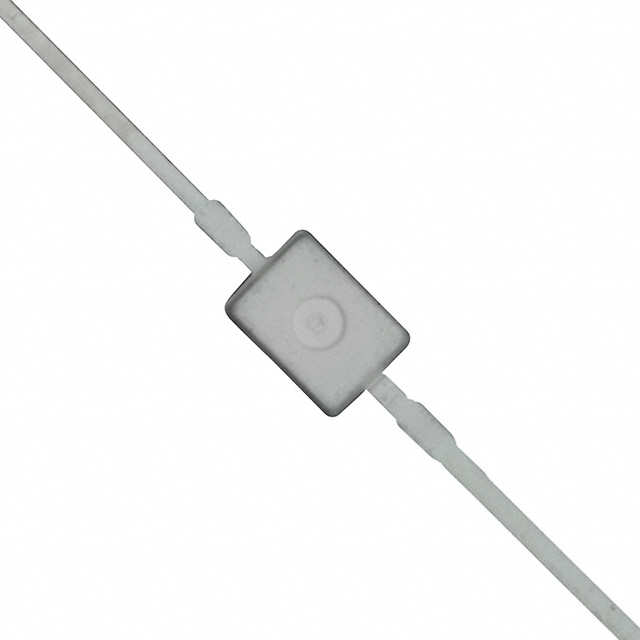

LN01801C
LED ORANGE CLEAR T/H AXIALManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LN01801C is a through-hole, axial LED designed for clear indication. This discrete component features a standard orange light emission with a peak wavelength of 630nm. The forward voltage is typically 2.1V at 20mA test current, producing a luminous intensity of 8mcd. The LED has a colorless, clear lens with a rectangular shape and a flat top, measuring 2.50mm x 1.70mm. The component's dimensions are 3.00mm in length by 2.10mm in width. This device is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Orange |
| Size / Dimension | 3.00mm L x 2.10mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 1.70mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.50mm x 1.70mm |
