LN01301C
LED GREEN CLEAR T/H AXIALManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

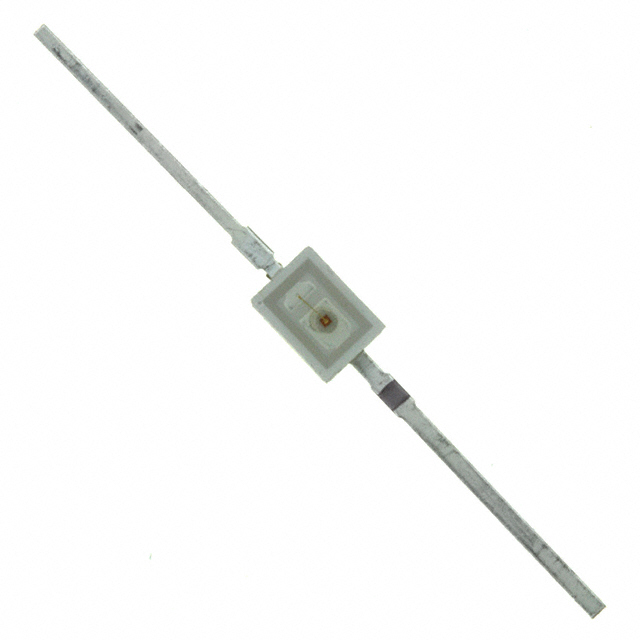

Panasonic Electronic Components LN01301C is a through-hole, axial leaded green LED designed for indication purposes. This discrete LED features a clear, colorless lens with a flat-top rectangular profile, measuring 2.50mm x 1.70mm. The component operates with a typical forward voltage of 2.2V and requires a test current of 20mA, producing a luminous intensity of 10mcd at a peak wavelength of 565nm. Its axial, flat lead package and standard configuration make it suitable for various applications in industrial control, consumer electronics, and medical equipment. The overall dimensions of the component are 3.00mm in length and 2.10mm in width, with a maximum height of 1.70mm. This device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Green |
| Size / Dimension | 3.00mm L x 2.10mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 1.70mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.50mm x 1.70mm |
