LN01201C
LED RED CLEAR T/H AXIALManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

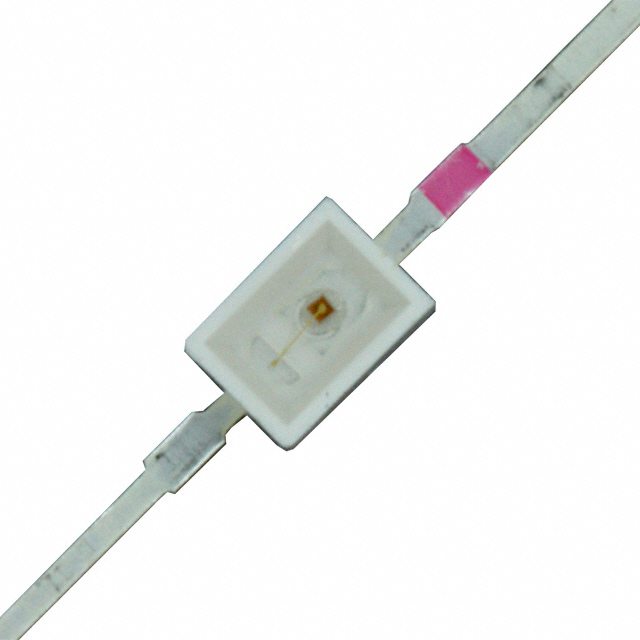

Panasonic Electronic Components LN01201C is a through-hole, axial LED designed for clear red indication. This discrete component features a flat-top rectangular lens measuring 2.50mm x 1.70mm with a 2.2V typical forward voltage. Tested at 15mA, it provides a luminous intensity of 1.5mcd with a peak wavelength of 700nm. The component's dimensions are 3.00mm in length and 2.10mm in width, with a maximum height of 1.70mm. It is supplied in bulk packaging. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status and operational indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Red |
| Size / Dimension | 3.00mm L x 2.10mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 1.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 15mA |
| Viewing Angle | - |
| Height (Max) | 1.70mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.50mm x 1.70mm |
