LNA2402L
EMITTER IR 950NM 100MA TO-18Manufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

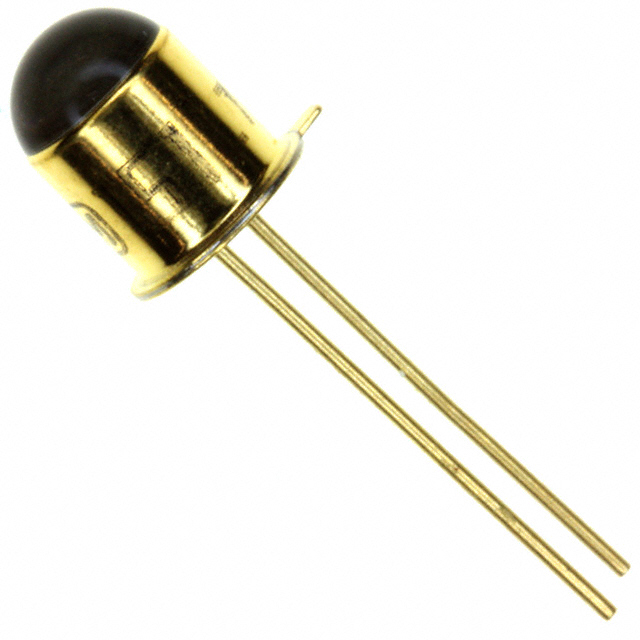

Panasonic Electronic Components LNA2402L is a TO-18-2 metal can infrared emitter with a peak wavelength of 950nm. This through-hole component is designed for a maximum DC forward current of 100mA and exhibits a typical forward voltage of 1.3V. Its radiant intensity is specified at a minimum of 5mW/sr at 100mA, with a narrow viewing angle of 16 degrees. Operating within an ambient temperature range of -25°C to 100°C, the LNA2402L is suitable for applications in automation, sensing, and optical communication systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 16° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 5mW/sr @ 100mA |
