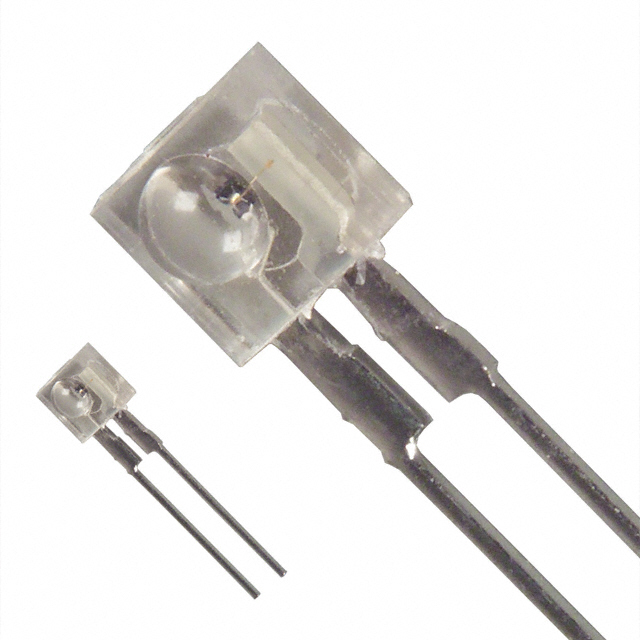

LN78
EMITTER IR 880NM 100MA RADIALManufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Panasonic Electronic Components LN78 is an infrared emitter featuring an 880nm wavelength and a 100mA DC forward current. This through-hole radial component operates with a typical forward voltage of 1.5V. At 50mA, it delivers a radiant intensity of 6mW/sr, with a viewing angle of 80°. The LN78 is designed for applications requiring reliable IR emission and is suitable for use in industrial automation, security systems, and optical sensing. Its operating temperature range is -25°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | Radial |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 6mW/sr @ 50mA |
