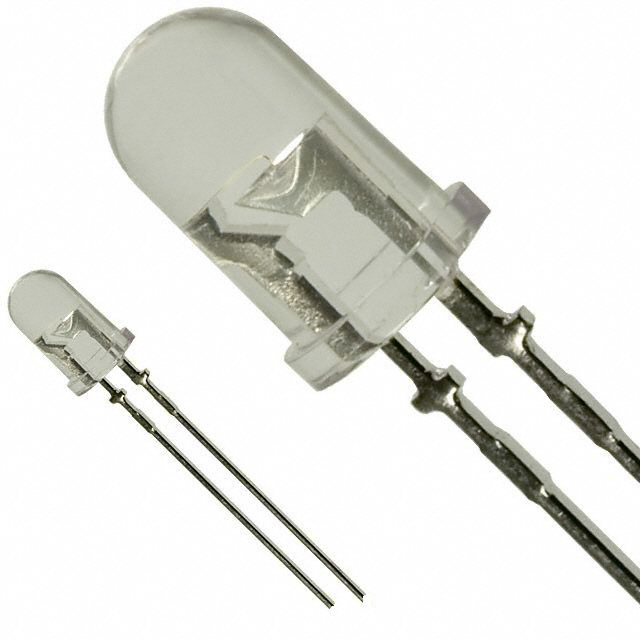

LN77L
EMITTER IR 860NM 100MA T 1 3/4Manufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Panasonic Electronic Components' LN77L is an infrared (IR) emitter with a peak wavelength of 860nm. This through-hole component, housed in a T 1 3/4 package, operates with a typical forward voltage of 1.6V and a maximum DC forward current of 100mA. The device delivers a radiant intensity of at least 10mW/sr at 50mA, with a typical viewing angle of 40°. Designed for reliable performance across an operating temperature range of -25°C to 85°C (TA), the LN77L is suitable for applications in industrial automation, security systems, and optical sensing. This component is provided in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T 1 3/4 |
| Wavelength | 860nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Viewing Angle | 40° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 10mW/sr @ 50mA |
