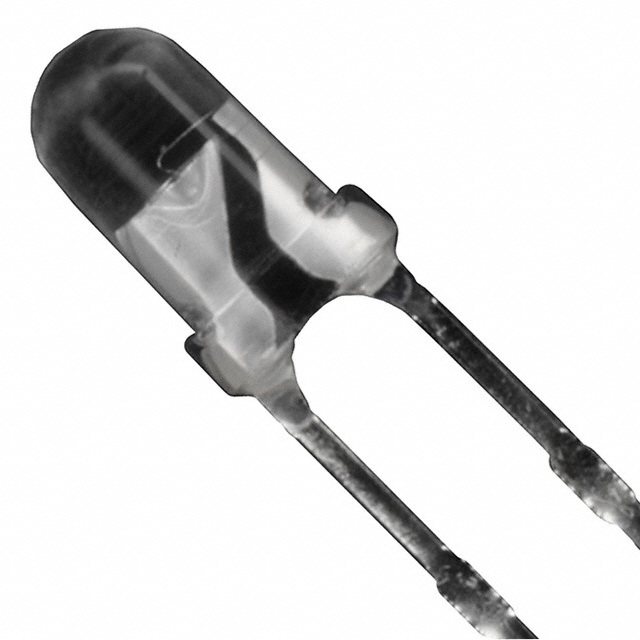

LN69
EMITTER IR 940NM 50MA T-1Manufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The Panasonic Electronic Components LN69 is a T-1 package infrared (IR) emitter designed for through-hole mounting. This component operates with a typical forward voltage of 1.3V and a maximum DC forward current of 50mA. It emits infrared light at a wavelength of 940nm, with a radiant intensity of a minimum of 3.5mW/sr at 50mA. The emitter features a viewing angle of 30 degrees and is suitable for operation within an ambient temperature range of -25°C to 85°C. Applications for this component span various industries requiring precise optical signaling and detection.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T-1 |
| Wavelength | 940nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 30° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 3.5mW/sr @ 50mA |
