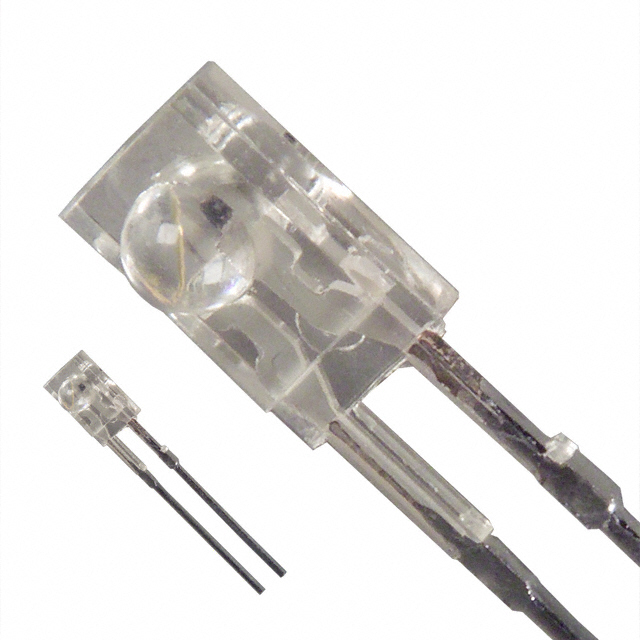

LN59
EMITTER IR 940NM 50MA RADIALManufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Panasonic Electronic Components LN59 is a radial-mount infrared (IR) emitter designed for through-hole applications. This component operates at a forward voltage of 1.3V and a DC forward current of up to 50mA. It emits radiation at a wavelength of 940nm with a minimum radiant intensity of 1.8mW/sr at 50mA. The viewing angle is specified at 40 degrees. The LN59 is suitable for use in industrial automation, security systems, and consumer electronics where reliable IR emission is critical. It is supplied in bulk packaging and operates within an ambient temperature range of -25°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 940nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View, Dual |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 40° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 1.8mW/sr @ 50mA |
Request a Quote
Clients Also Buy

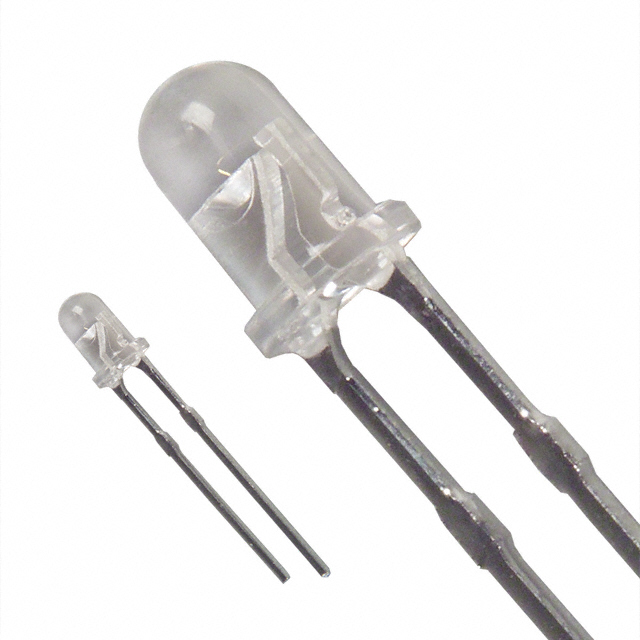

LNA2802L
EMITTER IR 940NM 50MA T-1

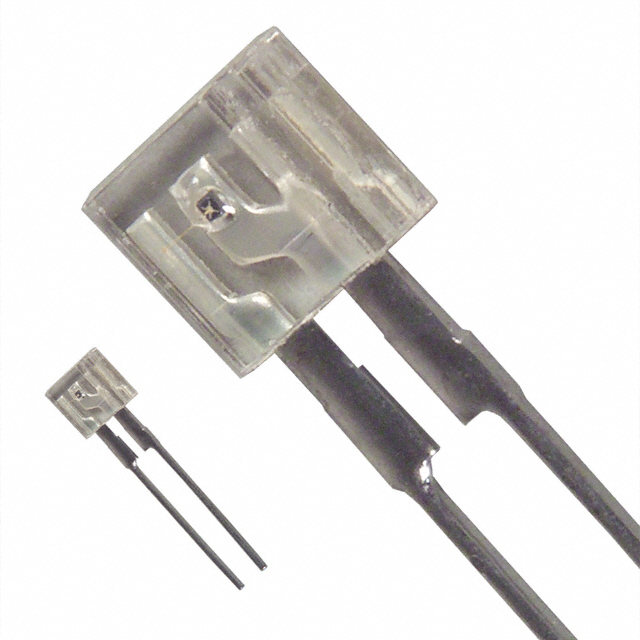

LNA2603F
