LN55
EMITTER IR 950NM 50MA RADIALManufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

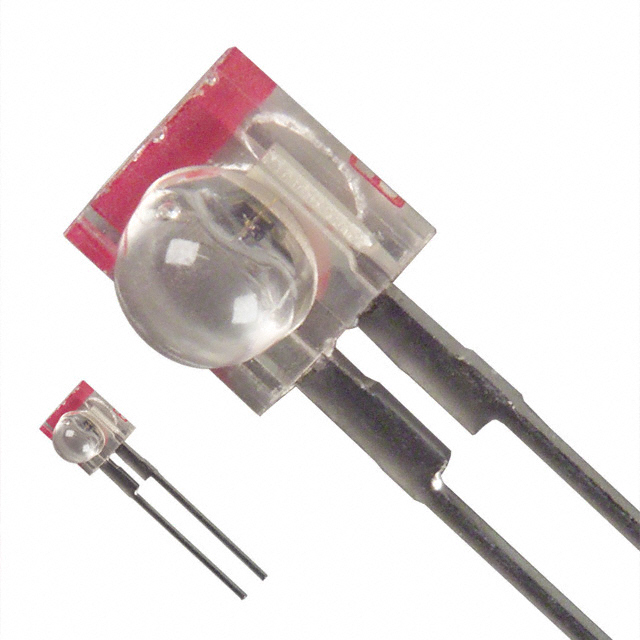

Panasonic Electronic Components LN55 is a radial-mount infrared (IR) emitter with a peak wavelength of 950nm. This component is designed for through-hole mounting and features a typical forward voltage of 1.5V and a maximum forward current of 50mA. At the maximum forward current, it achieves a radiant intensity of 1.8mW/sr. The emitter has a wide viewing angle of 70°, making it suitable for applications requiring broad illumination. Its operational temperature range is -25°C to 85°C. This Panasonic Electronic Components IR emitter is commonly utilized in industrial automation, security systems, and optical sensing applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 70° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 1.8mW/sr @ 50mA |
