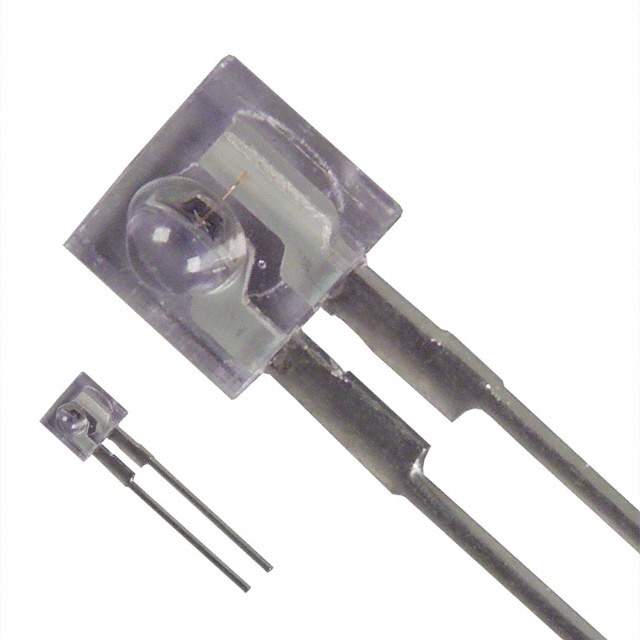

LN54
EMITTER IR 950NM 50MA RADIALManufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Panasonic Electronic Components LN54 is a through-hole mounted infrared emitter with a wavelength of 950nm. This radial package component is designed for a DC forward current (If) of 50mA, with a typical forward voltage (Vf) of 1.5V. The radiant intensity (Ie) is specified as a minimum of 2.5mW/sr at 50mA, and it features a 34° viewing angle. Operating within an ambient temperature range of -25°C to 85°C, this emitter is suitable for applications in security systems, optical switches, and industrial automation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 34° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 2.5mW/sr @ 50mA |
