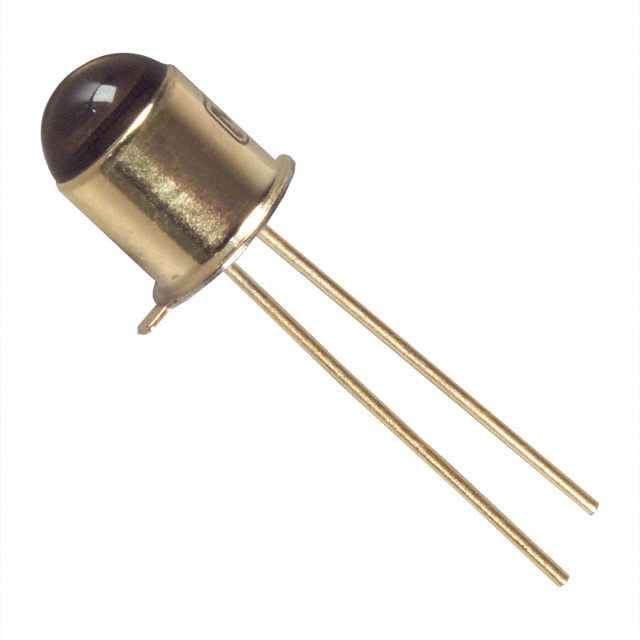

LN51L
EMITTER IR 950NM 100MA TO-18Manufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Panasonic Electronic Components LN51L is a Through Hole infrared emitter with a wavelength of 950nm. This TO-18-2 Metal Can component features a typical forward voltage of 1.25V and a maximum DC forward current of 100mA. At 100mA, it offers a radiant intensity of 6mW/sr. The viewing angle is 16° with a top view orientation. Operating temperature ranges from -25°C to 100°C (TA). This component is commonly utilized in industrial automation, security systems, and optical sensing applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Viewing Angle | 16° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 6mW/sr @ 100mA |
