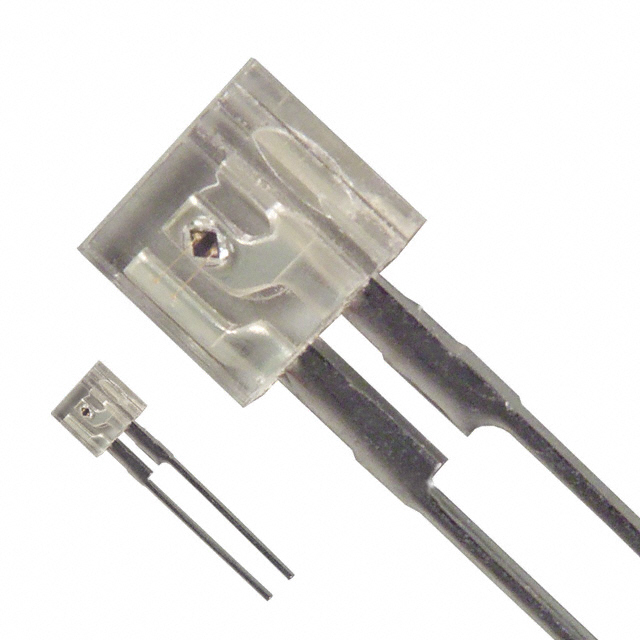

LN175
EMITTER IR 900NM 100MA RADIALManufacturer: Panasonic Electronic Components
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Panasonic Electronic Components LN175 is an infrared emitter designed for high-performance applications. This radial component operates at a peak wavelength of 900nm, emitting light with a forward voltage of 1.4V typical. Engineered for efficiency, it delivers a radiant intensity of 7mW/sr at a DC forward current of 100mA. The wide 120° viewing angle ensures broad illumination coverage. Manufactured with a through-hole mounting type, the LN175 is housed in a radial package suitable for various assembly processes. Its operating temperature range of -25°C to 85°C makes it robust for use in demanding environments. This component finds application in areas such as industrial automation, security systems, and optical sensing.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | Radial |
| Wavelength | 900nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 7mW/sr @ 100mA |
