AN30888A-VF
IC LED DRIVER CTRLR PWM 16SSOPManufacturer: Panasonic Electronic Components
Categories: LED Drivers
Quality Control: Learn More
Panasonic Electronic Components AN30888A-VF is a DC-DC controller designed for LED driver applications. This component features a single output and supports both step-down (buck) and step-up (boost) topologies, providing versatile power management for LED systems. The AN30888A-VF integrates Pulse Width Modulation (PWM) dimming control, allowing for precise brightness adjustment. It operates at a frequency of 1.2MHz and is housed in a 16-SSOP package, suitable for surface mount integration. The device accepts a supply voltage range from 3V to 20V. Its operational temperature range is -25°C to 85°C. This LED driver controller is commonly found in backlighting and general lighting solutions. The component is supplied on a tape and reel for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-LSSOP (0.173"", 4.40mm Width) |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 1.2MHz |
| Type | DC DC Controller |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Applications | Backlight, Lighting |
| Current - Output / Channel | - |
| Internal Switch(s) | No |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 16-SSOP |
| Dimming | PWM |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 20V |
Request a Quote
Clients Also Buy
AN30251A-VB
IC LED DRV CTRL 20MA/100MA 16QFN

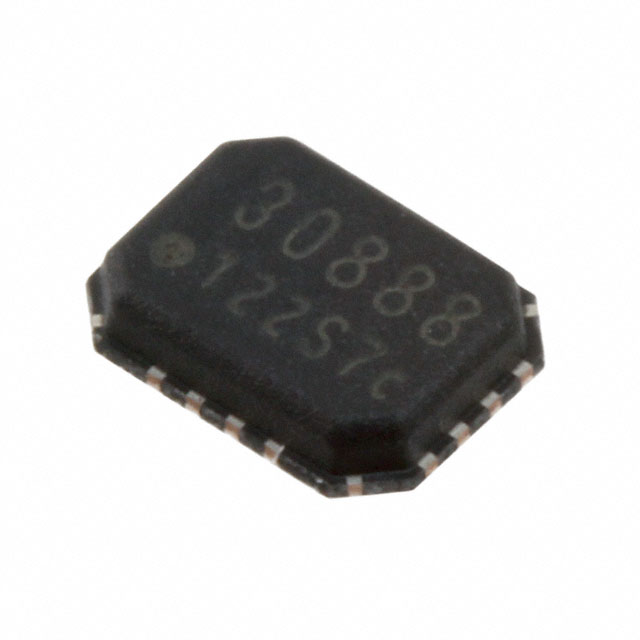

AN30888B-VB
