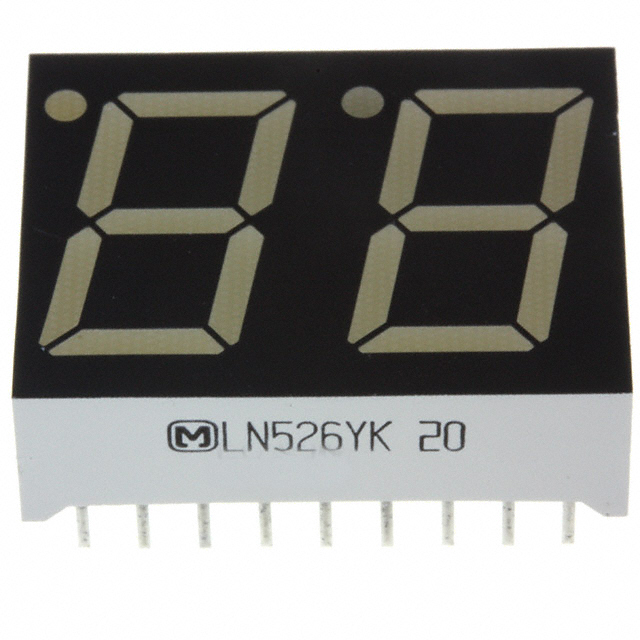

LN526YK
DISPLAY 7SEG 0.57"" DBL AMB 18DIPManufacturer: Panasonic Electronic Components
Categories: LED Character and Numeric
Quality Control: Learn More
Panasonic Electronic Components LN526YK is a 7-segment display module featuring two amber digits, each with a character height of 0.57 inches (14.40mm). This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.2V and a test current of 20mA, achieving a millicandela rating of 0.8mcd. The overall dimensions are 0.748 inches high by 0.988 inches wide by 0.315 inches deep (19.00mm x 25.10mm x 8.00mm). The module is housed in an 18-DIP package, suitable for applications in industrial control, instrumentation, and consumer electronics. Its characteristic peak wavelength is 590nm.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP |
| Color | Amber |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.988"" W x 0.315"" D (19.00mm x 25.10mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 0.8mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.57"" (14.40mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 590nm |
| Power Dissipation (Max) | 60mW |
