CND0333A
IRDA MODULE 4MBPS TOP VIEWManufacturer: Panasonic Electronic Components
Categories: IrDA Transceiver Modules
Quality Control: Learn More

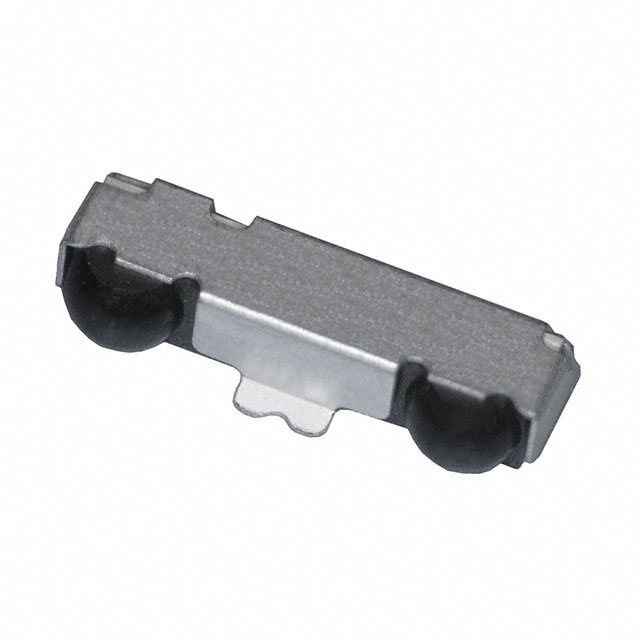

Panasonic Electronic Components CND0333A is a high-speed IrDA transceiver module supporting the IrDA 1.4 standard at 4Mbps. This top-view module is designed for efficient infrared data communication, featuring a typical idle current of 580 µA at 25°C and a low-power link range of 21.8cm. The CND0333A operates within a voltage supply range of 2.5V to 3.3V and has an operating temperature range of -20°C to 70°C. Its compact 7.2mm x 1.7mm x 1.5mm footprint, coupled with shutdown functionality, makes it suitable for power-sensitive applications. This component is commonly utilized in industrial automation, consumer electronics, and medical devices requiring short-range, wireless data transfer. The CND0333A is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Orientation | Top View |
| Operating Temperature | -20°C ~ 70°C |
| Size | 7.2mm x 1.7mm x 1.5mm |
| Data Rate | 4Mbps |
| Standards | IrDA 1.4 |
| Link Range, Low Power | 21.8cm |
| Shutdown | Yes |
| Voltage - Supply | 2.5 V ~ 3.3 V |
| Idle Current, Typ @ 25°C | 580 µA |
