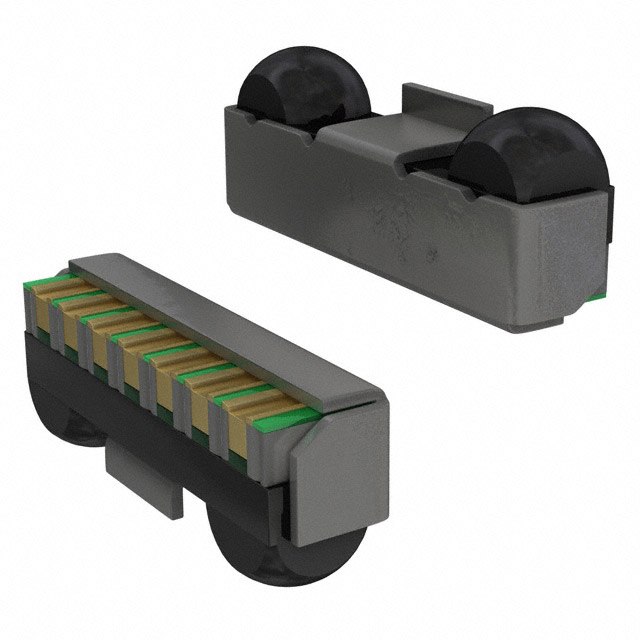

CND0204A
IRDA MODULE 115.2KBPS 8 PIN SMDManufacturer: Panasonic Electronic Components
Categories: IrDA Transceiver Modules
Quality Control: Learn More
The Panasonic Electronic Components CND0204A is a SIR (Serial Infrared) IrDA transceiver module supporting a data rate of 115.2kbs. This 8-pin SMD component features a compact 7.2mm x 1.6mm x 2.6mm footprint and a top-view orientation. It operates within a supply voltage range of 2.4 V to 3.6 V and boasts a typical idle current of 200 nA at 25°C. The module includes a shutdown function for power management and offers a low-power link range of 42cm. Operating temperatures are specified from -30°C to 85°C. This component is commonly utilized in applications requiring short-range, medium-speed wireless data communication, such as in portable electronics, mobile devices, and industrial control systems. The CND0204A is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Orientation | Top View |
| Operating Temperature | -30°C ~ 85°C |
| Size | 7.2mm x 1.6mm x 2.6mm |
| Data Rate | 115.2kbs (SIR) |
| Standards | - |
| Link Range, Low Power | 42cm |
| Shutdown | Yes |
| Voltage - Supply | 2.4 V ~ 3.6 V |
| Idle Current, Typ @ 25°C | 200 nA |
