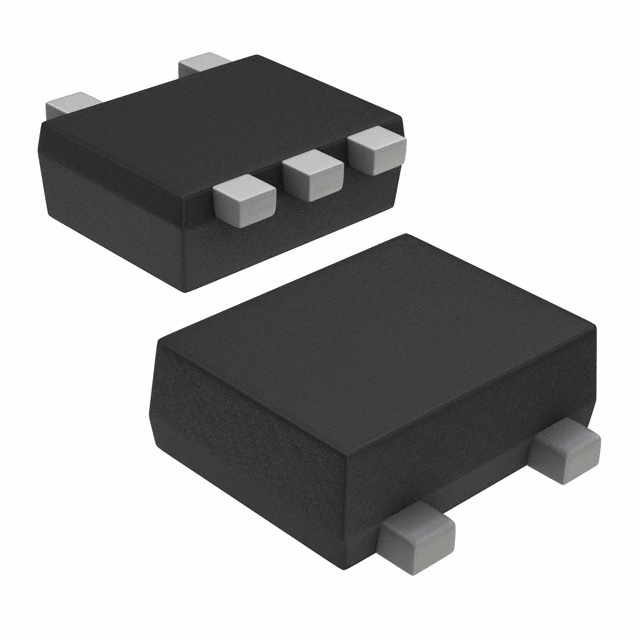

AN1101SSMTXL
IC OPAMP GP 1 CIRCUIT SSMINI-5DAManufacturer: Panasonic Electronic Components
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Panasonic Electronic Components AN1101SSMTXL is a single-circuit, general-purpose operational amplifier designed for surface-mount applications. This component, housed in a SOT-665 (SSMini-5DA) package, offers a typical input bias current of 1 pA and a supply current of 55µA. The AN1101SSMTXL operates across a supply voltage range of 2.5V to 5.5V, with a notable slew rate of 0.35V/µs. It features a voltage input offset of 500 µV and is rated for operation within a temperature range of -30°C to 85°C. This device is commonly utilized in instrumentation and buffer amplifier applications within industrial and consumer electronics sectors. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-665 |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -30°C ~ 85°C |
| Current - Supply | 55µA |
| Slew Rate | 0.35V/µs |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | SSMini-5DA |
| Number of Circuits | 1 |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
