FC4B22270L1
MOSFET 2 N-CHANNEL 4SMDManufacturer: Panasonic Electronic Components
Categories: FET, MOSFET Arrays
Quality Control: Learn More

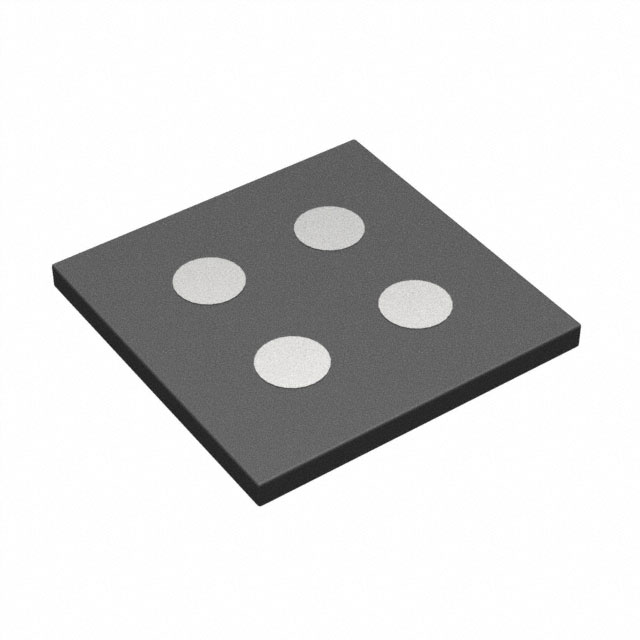

The Panasonic Electronic Components FC4B22270L1 is a dual N-channel MOSFET array designed for surface mount applications. This component, housed in a 4-XFLGA, CSP package (ULGA004-W-1313-RA), offers a 1.5W power dissipation capability at an ambient temperature. Key electrical characteristics include a maximum gate charge of 9nC at 4V and a maximum input capacitance of 910pF at 10V. The threshold voltage (Vgs(th)) is specified at a maximum of 1.4V for a gate-source voltage and a drain current of 310µA. This device is suitable for use in various industries including automotive and industrial control systems. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFLGA, CSP |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.5W (Ta) |
| Drain to Source Voltage (Vdss) | - |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | 910pF @ 10V |
| Rds On (Max) @ Id, Vgs | - |
| Gate Charge (Qg) (Max) @ Vgs | 9nC @ 4V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.4V @ 310µA |
| Supplier Device Package | ULGA004-W-1313-RA |
