EVQ-WK4001
ROTARY ENCODER MECHANICAL 15PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More
Panasonic Electronic Components EVQ-WK4001, a mechanical rotary encoder from the EVQWK series, offers 15 pulses per revolution in a quadrature (incremental) output format. This vertical mount encoder features a thumbwheel actuator and includes a built-in switch, providing tactile feedback with its detent mechanism. Designed for PCB surface mounting, the EVQ-WK4001 is terminated with SMD (SMT) tabs for efficient assembly. With a rotational life rated at a minimum of 100,000 cycles, this component is suitable for demanding applications in consumer electronics, industrial controls, and automotive systems where precise rotational input and switching functionality are critical. The encoder's robust mechanical construction ensures reliable performance in various operating environments.
Additional Information
Series: EVQWKRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Surface Mount |
| Orientation | Vertical |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Actuator Type | Thumbwheel |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 100k |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
EVQ-WK5001
ROTARY ENCODER MECHANICAL 15PPR

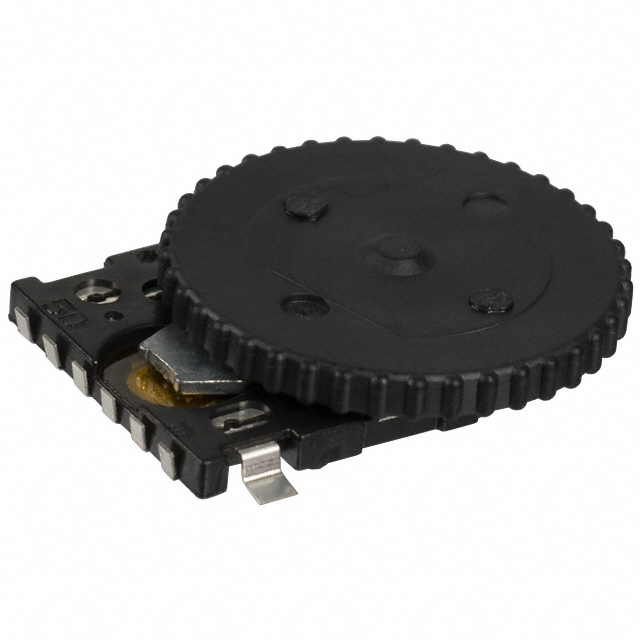

EVQ-WKA001
